Best Grill Grate Upgrades

The grate is the only part of a grill that touches the food, and on most grills it's the cheapest part. Four upgrades that add a real sear zone, a hatch for fuel, or both — with a live price on each.

By Stephen V.Last updated Our methodology

Grate upgrades are the most under-rated purchase in outdoor cooking, for a simple reason: the grate is the only component that actually touches your food, and on most grills it is the cheapest thing in the box. Manufacturers economize there because a thin plated-steel rod grate is what makes the sticker price work, and because most buyers compare BTU and cooking area rather than what those square inches are made of.

What a grate actually does comes down to how much heat it stores and how much of it touches the food. Thermal mass is the important one and the one people miss. When you lay a cold steak on a thin rod grate, the rod gives up its heat almost instantly and the metal under the meat drops to roughly the temperature of the steak — which is why the marks go gray and faint instead of dark and defined. A cast-iron or thick aluminum grate holds enough heat to keep browning through that first contact. That is the entire argument for upgrading, and it is the difference you notice on the first cook.

There are three genuinely different upgrades here and they solve three different problems. Interlocking rail panels(GrillGrate) sit on top of your existing grate and change the cooking surface completely — raised aluminum rails conduct heat upward while the valleys between them catch drippings and sizzle them back into the food. They are universal, which matters, and they are the only thing on this page that will meaningfully improve a pellet grill’s searing. Hinged grates solve a completely different problem: they let you add charcoal or a wood chunk mid-cook without lifting the food off, which on a long kettle cook is the difference between managing a fire and disassembling dinner. Cast-iron sear inserts add thermal mass in one zone for steak marks.

Fitment is the thing to get right before you spend, and it is where most bad purchases happen. Weber’s grates are made for 22-inch Weber charcoal grills and will not fit anything else; the rail panels fit any grill with 15 inches of depth or more, which is nearly everything. Measure first. We own none of these and have not tested them — see our methodology for exactly what we do instead.

How this is funded: we earn a commission if you buy through our links, at no extra cost to you. It never changes which product we recommend, and we’ll tell you when we’d skip one, or point you to a cheaper option when it’s the better buy. Full disclosure.

The picks, side by side

Ranked, with the published specs and a live price on every pick. Select a row to jump to the full write-up. We haven’t tested these ourselves — here’s exactly what we do instead.

#ProductFitsMaterialPrice
1
GrillGrate Sear Station Interlocking Panels (3-panel set)

GrillGrate Sear Station Interlocking Panels (3-panel set)

Best sear upgrade, any grill
Grills 15 in deep and upHard-anodized aluminum
$98.99 · View on Amazon

$106.067% off

Price as of September 6, 2026. #ad How we’re funded

2
Weber Gourmet BBQ System Hinged Cooking Grate (22 in)

Weber Gourmet BBQ System Hinged Cooking Grate (22 in)

Best all-round kettle upgrade
22 in Weber charcoal grillsPlated steel
$59.98 · View on Amazon

Price as of September 6, 2026. #ad How we’re funded

3
Weber Hinged Charcoal Cooking Grate (22 in)

Weber Hinged Charcoal Cooking Grate (22 in)

Best value for a kettle
22 in Weber charcoal grillsPlated steel
$43.99 · View on Amazon

$48.9910% off

Price as of September 6, 2026. #ad How we’re funded

4
Weber Gourmet BBQ System Cast-Iron Sear Grate

Weber Gourmet BBQ System Cast-Iron Sear Grate

Best cast-iron sear insert
Gourmet BBQ System 12 in openingPorcelain-enameled cast iron
$59.49 · View on Amazon

Price as of September 6, 2026. #ad How we’re funded

The picks in full

#1Best sear upgrade, any grill

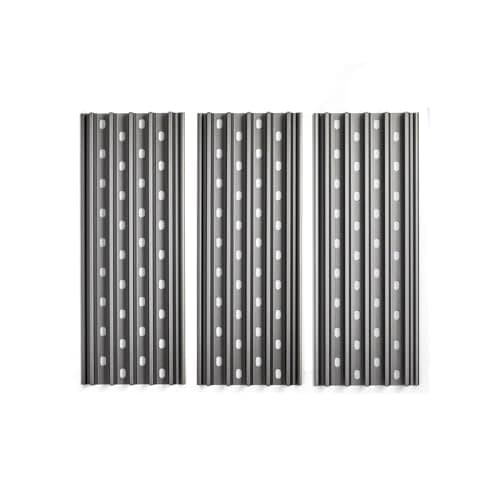

GrillGrate Sear Station Interlocking Panels (3-panel set)

The only grate here that changes how a grill cooks rather than just what you cook on. The raised rails conduct heat up into the meat while the valleys between them catch and sizzle the drippings, which is why pellet grills — the cookers least able to sear — get the most out of a set. Flip the panels over and you have a near-solid flat top for fish, prawns and vegetables that would otherwise fall through.

What the numbers say
  • Raised rails conduct heat up and mark meat like a much hotter grill
  • Reversible — rails up to sear, flat side up as a griddle
  • Hard-anodized aluminum won't rust, and a GrateTool is included
Worth knowing
  • One set covers 15 x 15.375 in — a big grill needs two
  • The most expensive grate upgrade here by a distance

Best for: Adding a real sear to a pellet grill or a weak gas grill

Specs read from GrillGrate Sear Station product page + Amazon listing, last checked August 18, 2026. Prices change; the number in the card is fetched live.

#2Best all-round kettle upgrade

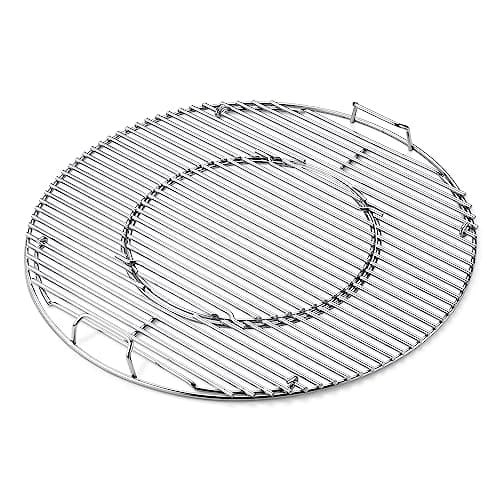

Weber Gourmet BBQ System Hinged Cooking Grate (22 in)

Two upgrades in one grate. The hinged sides let you top up charcoal mid-cook without lifting food off, which is the single most useful thing a kettle grate can do on a long cook, and the removable 12-inch center opens the grill up to Weber's Gourmet BBQ System inserts — sear grate, griddle, wok, pizza stone. If you own a 22-inch kettle and plan to keep it, this is the grate it should have shipped with.

What the numbers say
  • Hinged sides let you add charcoal without moving the food
  • 12 in removable center accepts Gourmet BBQ System inserts
  • Plated steel, sized for the 22 in Weber charcoal grills
Worth knowing
  • Only fits 22-inch Weber charcoal grills
  • Plated steel, not stainless — it will patina and eventually wear

Best for: 22-inch kettle owners who cook long and want inserts

Specs read from Weber Gourmet BBQ System hinged cooking grate (8835) product listing + Amazon listing, last checked August 18, 2026. Prices change; the number in the card is fetched live.

#3Best value for a kettle

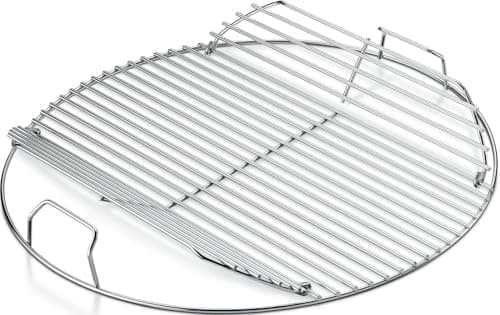

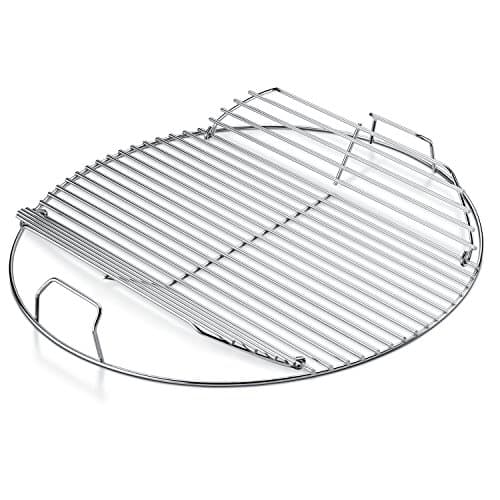

Weber Hinged Charcoal Cooking Grate (22 in)

The cheap half of the upgrade above. You get the hinged sides — add charcoal or a wood chunk mid-cook without lifting the food — and you skip the Gourmet BBQ System insert you may never use. For anyone whose kettle came with a plain fixed grate and who cooks anything longer than burgers, this is the highest-value twenty-odd dollars on the page.

What the numbers say
  • Fold-up sides give access to the coals without moving food
  • Costs meaningfully less than the Gourmet BBQ System version
  • Direct fit for 22-inch Weber charcoal grills
Worth knowing
  • No removable center — no Gourmet BBQ System inserts
  • Only fits 22-inch Weber charcoal grills

Best for: The cheapest fix for a fixed kettle grate

Specs read from Weber hinged charcoal cooking grate (7436) product listing + Amazon listing, last checked August 18, 2026. Prices change; the number in the card is fetched live.

#4Best cast-iron sear insert

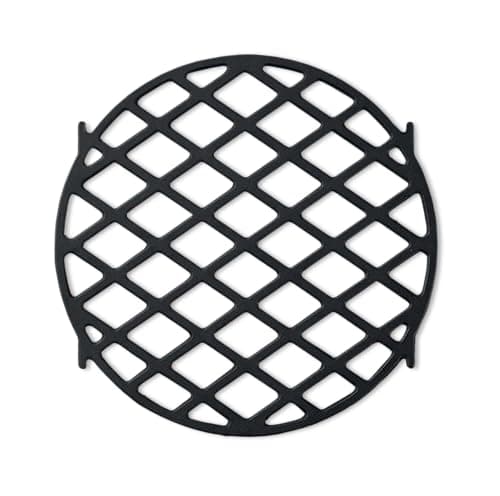

Weber Gourmet BBQ System Cast-Iron Sear Grate

The insert that justifies the Gourmet BBQ System grate above. Cast iron stores far more heat than the thin plated rod of a standard grate, so it keeps its temperature when cold meat lands on it — which is exactly when a normal grate gives up and you get gray bands instead of a crust. It only makes sense if you already own, or are buying, a GBS grate to drop it into.

What the numbers say
  • Cast iron holds heat when cold meat hits it, so the sear doesn't stall
  • Drops straight into the 12 in Gourmet BBQ System opening
  • Porcelain-enameled, so it doesn't need seasoning like bare iron
Worth knowing
  • Useless without a Gourmet BBQ System grate to sit in
  • 12 in is a small sear zone — two steaks at a time, not six

Best for: Steak marks on a kettle that already has a GBS grate

Specs read from Weber Gourmet BBQ System Sear Grate product listing + Amazon listing, last checked August 18, 2026. Prices change; the number in the card is fetched live.

How to choose

  • Decide which problem you actually have.Weak sear marks → thermal mass (rail panels or cast iron). Fiddly refueling on long cooks → a hinged grate. Wanting to add a wok, griddle or pizza stone → the Gourmet BBQ System grate with its removable center.
  • Measure before you buy.“22-inch” Weber grates are made for Weber’s 22-inch charcoal grills specifically, not for any grill that happens to be 22 inches across. Rail panels are far more forgiving and work on charcoal, gas and pellet grills alike.
  • Cast iron needs looking after; aluminum and plated steel do not. Porcelain-enameled cast iron avoids the seasoning routine of bare iron but still chips if you drop it. Hard-anodized aluminum will not rust at all.
  • Do not upgrade a grill you are about to replace.A good grate costs a meaningful fraction of a budget kettle. If the grill itself is the limitation, spend the money there instead — the field is in our best charcoal grills roundup.
  • Two zones beat one hot grate. A sear insert or a panel set covering part of the grill is usually better than covering all of it, because it gives you somewhere cooler to move food to.

Cast iron vs stainless vs aluminum

Cast ironstores the most heat per square inch, which is why it gives the darkest, most defined sear marks. It is heavy, it takes longer to come up to temperature, and bare iron needs seasoning — porcelain-enameled versions avoid that but can chip.

Stainless steel is the durability answer: it will not rust, it does not need seasoning, and a thick stainless rod holds respectable heat. It is what premium gas grills use, and it is genuinely low-maintenance.

Plated steel is what came with your grill. It is light, cheap and conducts poorly, and the plating eventually wears through and the steel underneath rusts. It is fine, and it is the baseline everything here improves on.

Hard-anodized aluminum, as used in rail panels, is the outlier: aluminum conducts heat far better than steel, so the rails transfer heat into the food quickly, and anodizing means it never rusts. The trade is that aluminum is softer, so it wants a plastic or wooden tool rather than a steel scraper.

Cleaning and care

Burn off, then brush, while the grate is still hot — residue that has cooled and set is far harder to remove. Avoid wire brushes with loose bristles, which is a genuine safety issue rather than a fussy one; a bristle-free scraper or a coiled brush is the safer choice. Oil food rather than oiling the grate, since oil on a hot grate mostly smokes and polymerizes into the residue you are trying to avoid. On cast iron and plated steel, dry it after cleaning — water sitting on a cooling grate is what starts the rust that eventually costs you the grate.

What else changes how a grill cooks

A grate upgrade is one of three cheap changes that punch well above their price. The other two are lighting the fire properly — see best charcoal chimney starters — and burning better fuel, covered in best lump charcoal. Get all three right on a basic kettle and it will outcook a neglected expensive grill. If you want to see the difference on a steak specifically, that method is in how to grill a steak on charcoal.

Frequently asked questions

Are grill grate upgrades worth it?

For sear marks and long-cook convenience, yes — and they're cheap relative to the grill. A thin plated-steel rod grate gives up its heat the moment cold meat lands on it, which is why the marks come out gray and faint. A cast-iron or thick aluminum surface holds enough heat to keep browning through that first contact. A hinged grate solves a different problem entirely: adding fuel mid-cook without moving the food.

What are GrillGrates and do they work?

They're interlocking hard-anodized aluminum panels with raised rails that sit on top of your existing grate. Aluminum conducts heat far better than steel, so the rails transfer heat into the food quickly and produce strong sear marks, while the valleys between them catch drippings and sizzle them back into the food. They're most transformative on pellet grills, which sear poorly by design, and they flip over to give a flat griddle surface.

What is a hinged grill grate for?

Adding charcoal or wood chunks partway through a cook without taking the food off. The two outer sections fold up on hinges, giving you direct access to the coals underneath. On anything longer than burgers — ribs, a whole chicken, a pork shoulder on a kettle — it turns an awkward juggling act into a five-second job, which is why it's the single most useful kettle grate upgrade.

Is a cast iron grill grate better than stainless?

For searing, cast iron holds more heat per square inch and gives darker, more defined marks. For durability and low maintenance, stainless wins: it won't rust, doesn't need seasoning, and a thick stainless rod still holds respectable heat. Porcelain-enameled cast iron is a middle ground that avoids seasoning but can chip. Choose cast iron if sear marks matter most, stainless if you'd rather not think about the grate at all.

Will a Weber grate fit my grill?

Only if it's the grill it was made for. Weber's 22-inch charcoal grates are sized for Weber's 22-inch charcoal grills, not for any grill that happens to measure 22 inches — bowl shape and the way the grate sits both matter. Measure your existing grate before ordering. Interlocking rail panels are the flexible option: they sit on top of whatever grate you already have and fit any grill with about 15 inches of depth or more.
